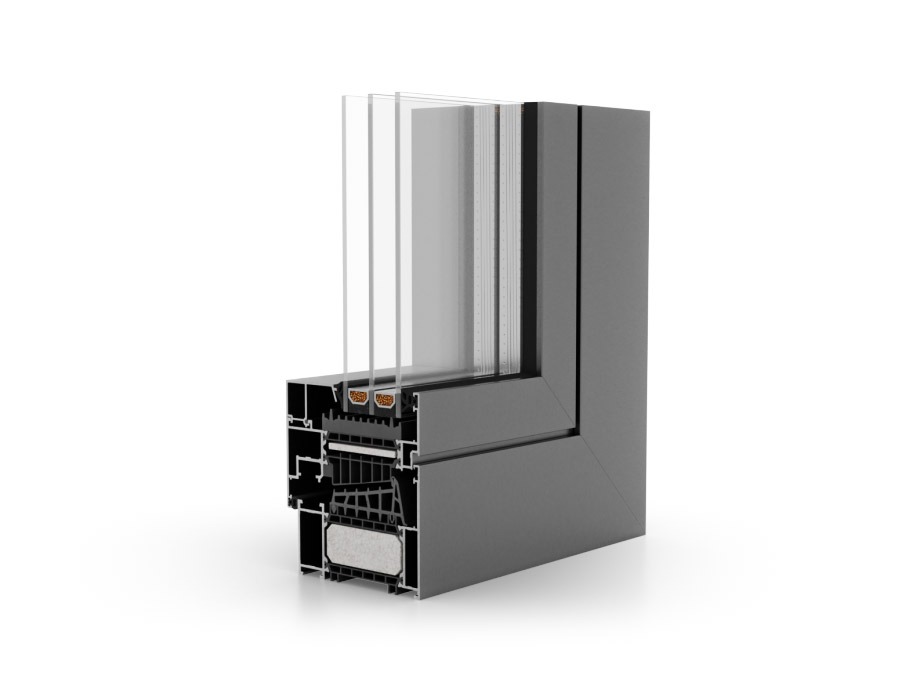

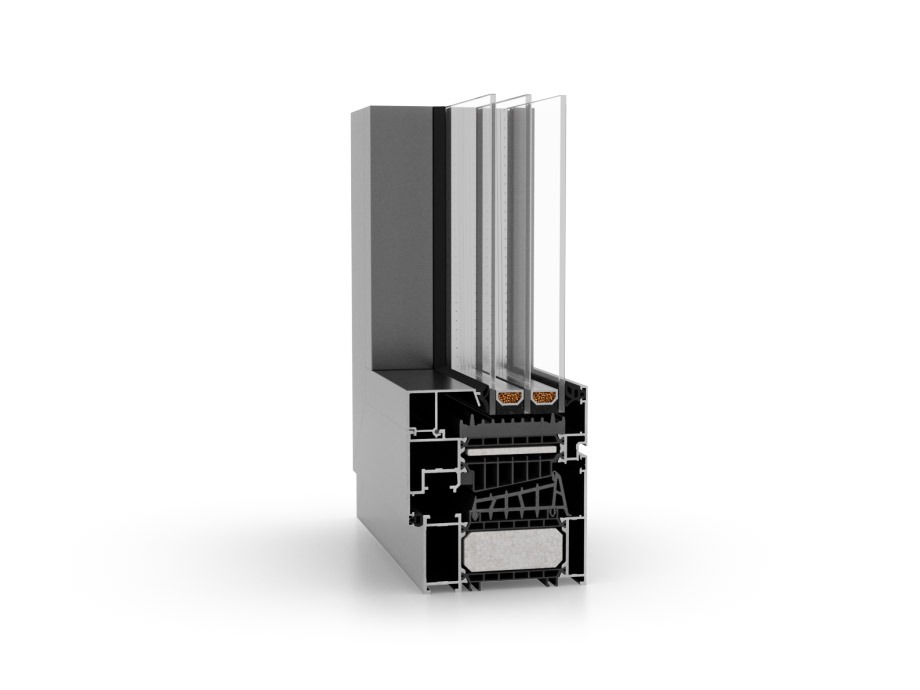

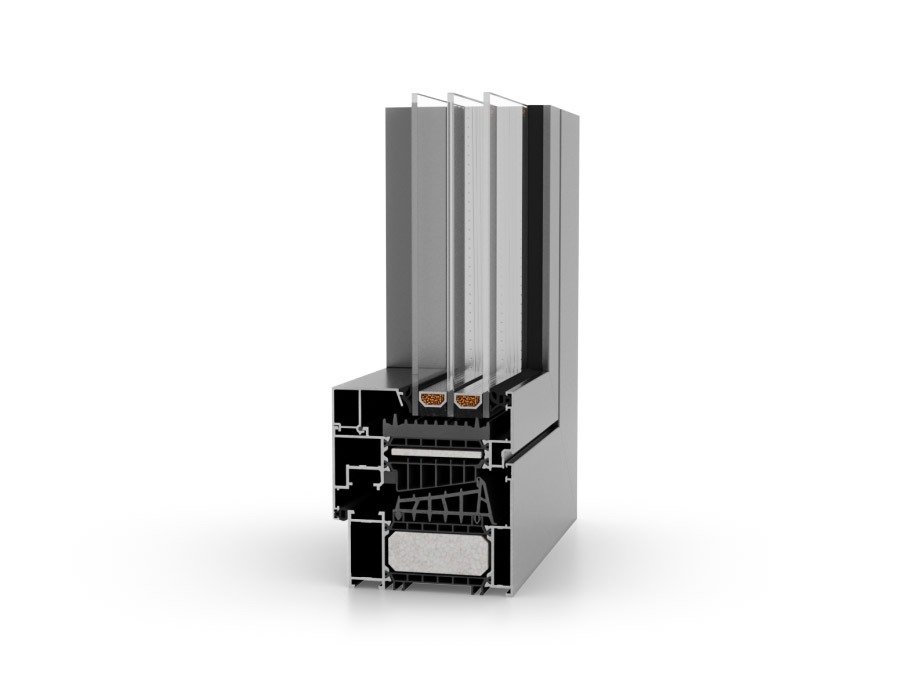

MB-104 Passive is a deep, thermally broken aluminium window system for external elements in energy-efficient and low-energy buildings. RS Concept, a Polish window and door supplier, quotes MB-104 Passive windows to your sizes for building projects. The frame depth is 95 mm and the sash depth 104 mm, with glazing up to 71 mm in the frame and 81 mm in the sash, so thick triple units fit. Sashes can be as large as 2900 mm high and 1700 mm wide. Three versions are available: MB-104 Passive SI, Passive and Passive Aero.
Send us drawings or a window schedule with sizes and colours, and we will prepare a quote. Lead time from 1 month, confirmed with the quotation.
Key features
- Thermally broken aluminium system for external elements
- Frame depth 95 mm, sash depth 104 mm
- Glazing units up to 71 mm (frame) / up to 81 mm (sash)
- Standard glazing unit 4/16Ar/4/16Ar/4
- Maximum sash size: height up to 2900 mm, width up to 1700 mm
- Versions: MB-104 Passive SI, MB-104 Passive, MB-104 Passive Aero
- Full RAL K7 colour palette; other colours on request (powder code)
- Catalogue Uw 0.73 W/m²K (best thermal variant)
- Uw is for the reference window only; the actual Uw of another window may differ.
Available on request
- Sizes and opening types to your window schedule or drawings
- Glazing units within the thickness range above (double or triple)
- Version: MB-104 Passive SI, Passive or Passive Aero
- Colours: full RAL K7 palette; other colours via powder code
- Technical data and profile drawings for your project
Lead time
From 1 month, confirmed with each quotation.
