The GEALAN S8000 Monoblock is specifically designed for construction projects utilizing interior wall insulation. This integrated system combines the window frame with a protective sub-sill, ensuring a perfect thermal bridge-free connection between the window and the insulated wall.

Technical Precision for Large-Scale Projects

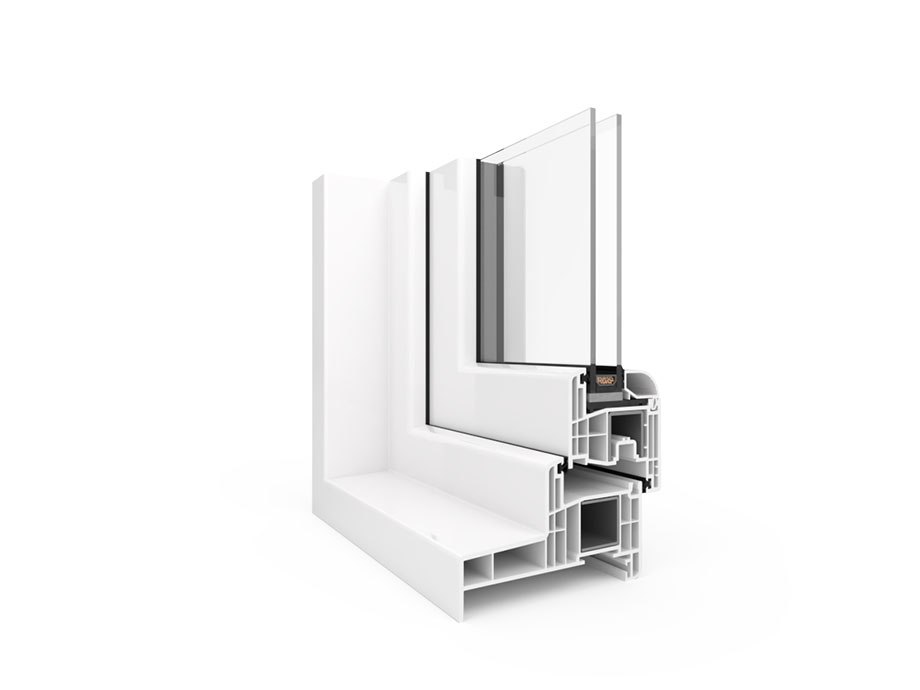

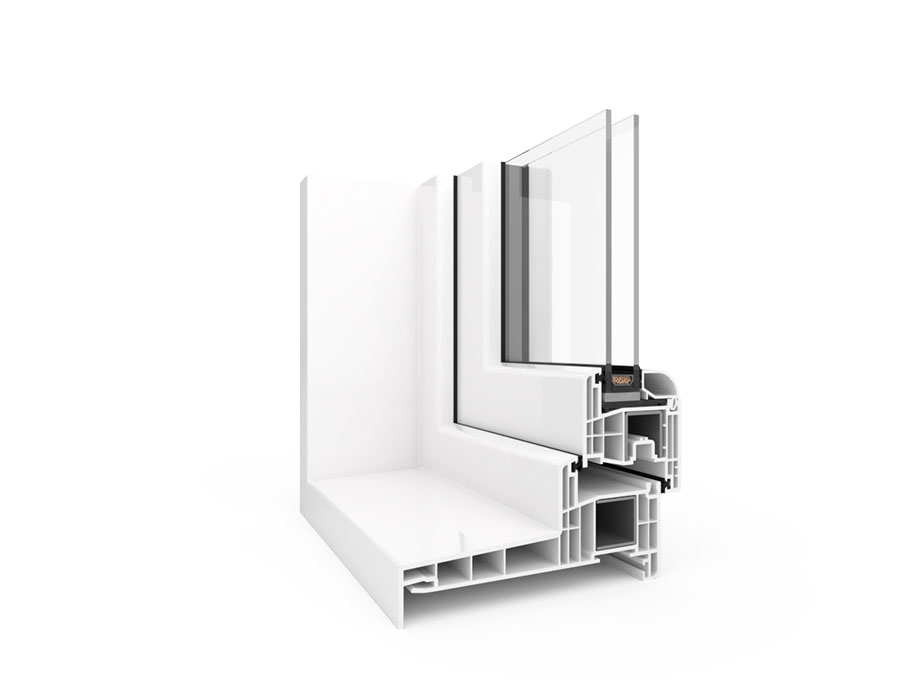

Variable Installation Depths: To accommodate different insulation thicknesses, we offer frame depths of 129 mm, 149 mm, and 169 mm.

High-Efficiency Core: Featuring 5 or 6 chambers, the system achieves a thermal coefficient of 1.3 Uw for Ug = 1.1 (with an aluminium spacer).

Glazing Versatility: Supports glass up to 50mm (STV technology) or 48mm (standard technology), allowing for high-spec acoustic or triple glazing.

Reinforced Security: Built for safety with five anti-burglar latches per sash.

Expansive Design: Capable of reaching a maximum window height of 2345 mm and a glazing area of 2.45 m2 per sash.

Sustainability & Performance

The S8000 Monoblock series is engineered to conserve natural resources through optimized profile geometry without sacrificing structural rigidity. It provides excellent acoustic insulation and long-term durability for both residential and commercial buildings.
